16 Years Led Screen Solution Provider

English
English Kingaurora CN Kingaurora RUS Kingaurora ES
Stock code：871074
English CN RUS ES

Product

Home： Products
D Series
D Series
D Series
D Series

D Series

Refresh Rate (Hz)：3840

IP rating (Front/Rear)：IP65/IP54

Lifetime Typical Value（hrs）：100000

Request Demo

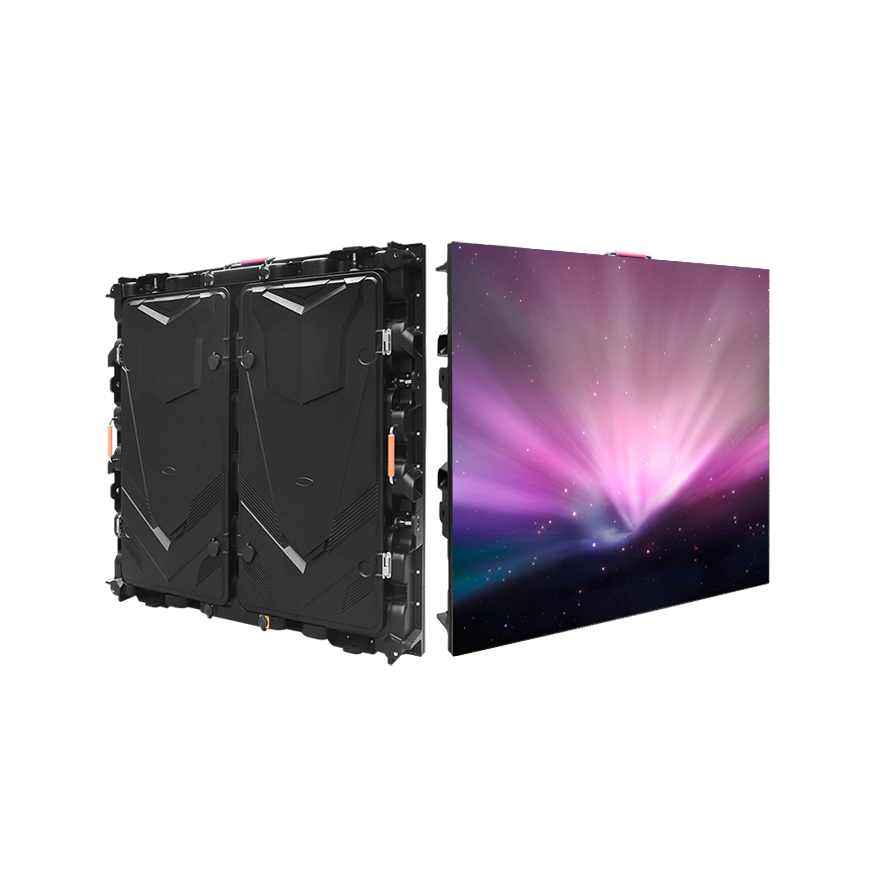

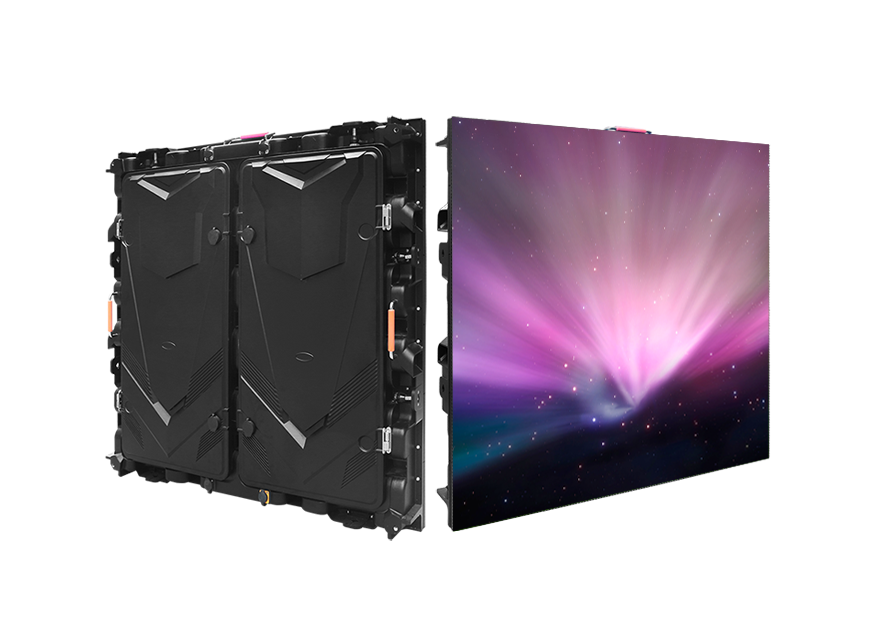

Energy-Saving Screens-D Series

  • Energy saving50%

  • High Brightness

  • pri1-icon4.png

    Lightweight

  • High Stability


50% energy saving = value creation

Brightness: 8000nits,MAX Power: only 350W/m² Patented customized energy-saving IC+ patented DIP 3 IN 1 full color high brightness lamp , saving more power but still high brightness , very suitable for outside.
High heat dissipation
Adopts die-cast aluminum Cabinet, Good heat dissipation.
Light weight

Light weight and Excellent Flatness Standard Die-casting Aluminum Cabinet.

Shining and sparkling all day and night
Support automatic adjustment, high water-proof and dust-proof, the self-encapsulated 3 in 1 full color lamp makes good color mixing and increases the restoration degree by 20%, which can also restore image completely at outside.
Applications
D series is designed for Sports venue, commercial square, railway station square, airport, pedestrian street, station, subway, leisure dock, exhibition hall, etc.
High protection
Comprehensive water-proof design, easy to deal with all kinds of harsh environment.

More models for your more needs, please choose your favorite one...

Product Name

D6.6

D8

D10

Pixel Configuration

DIP570

DIP570

DIP570

Pixel Pitch(mm)

6.67

8

10

Pixel matrix per panel

144x144

120x120

96x96

Cabinet Dimensions(mm)

960x960x113

960x960x113

960x960x113

Transparency Rate

/

/

/

Refresh Rate(Hz)

3840

3840

3840

Drive Mode

1/6

1/4

1/4

Brightness (nits)

8000

8000

8000

Horizontal / Vertical Viewing Angle

110/55

110/55

110/55

AC Input Power Maximum/Average

350/117

350/117

350/117

Stay a Step ahead in Indoor Advertising

Contact our sales team today to discover how our energy-efficient, high-brightness, and stable indoor LED screens can transform your space.
