Energy saving
8000nits
High Stability

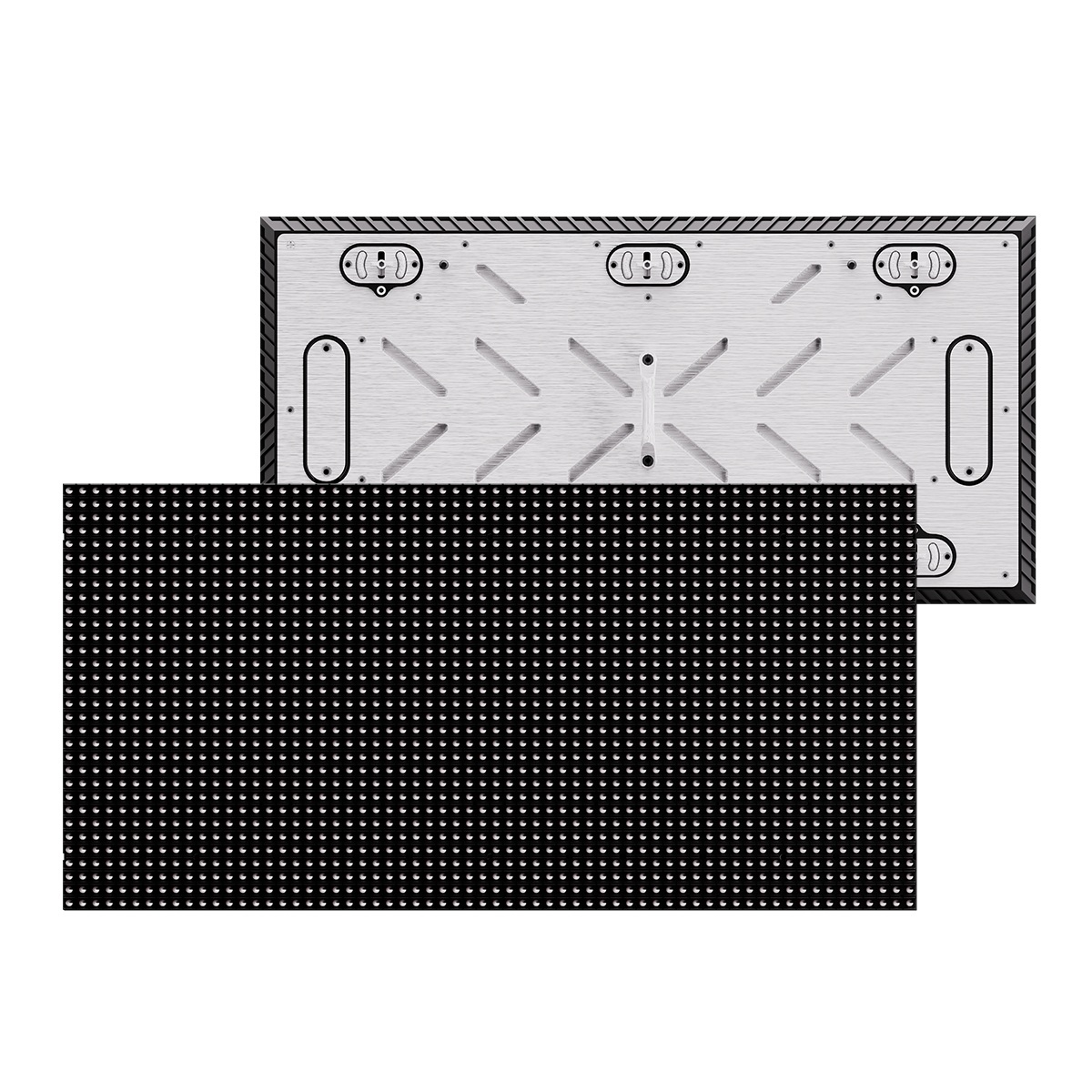

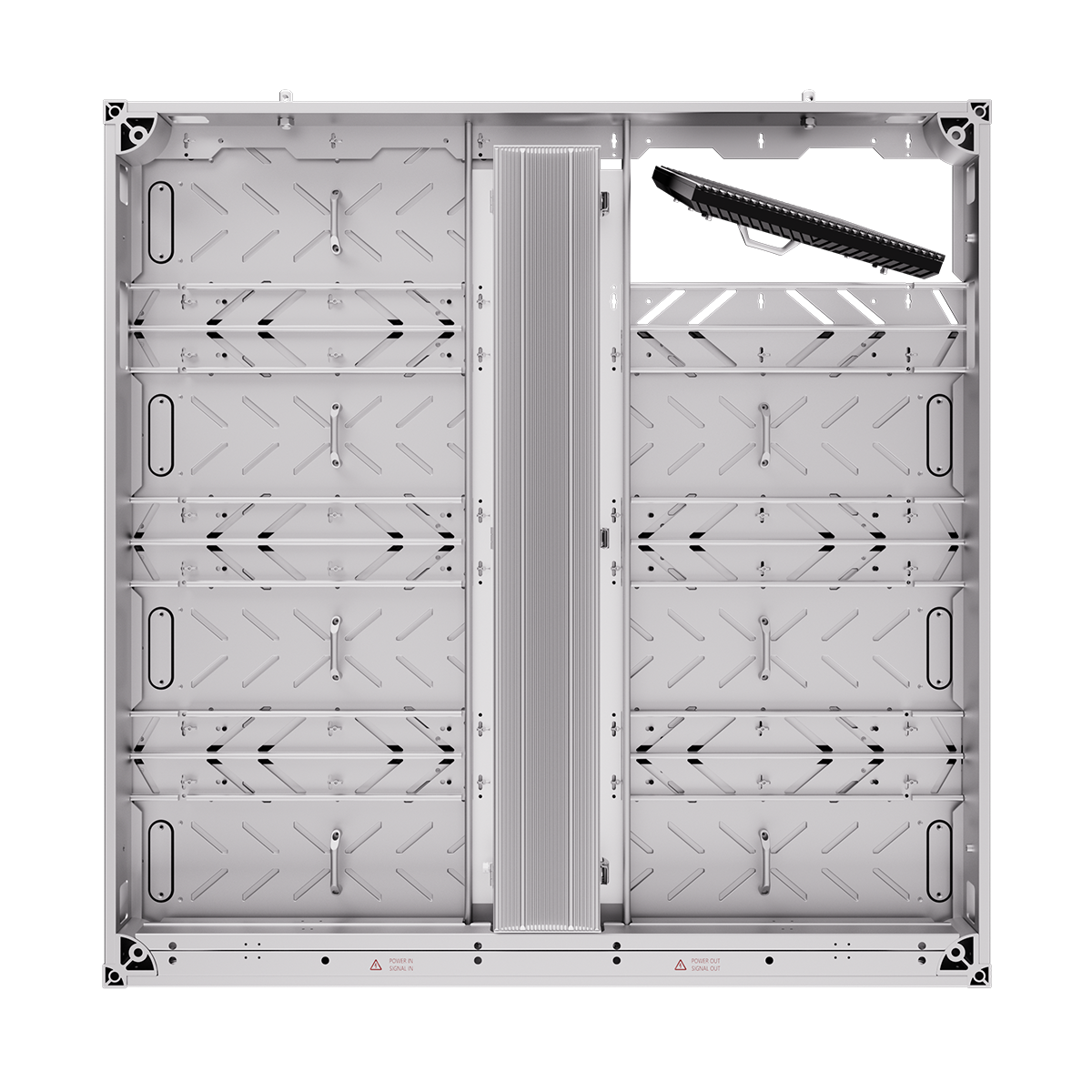

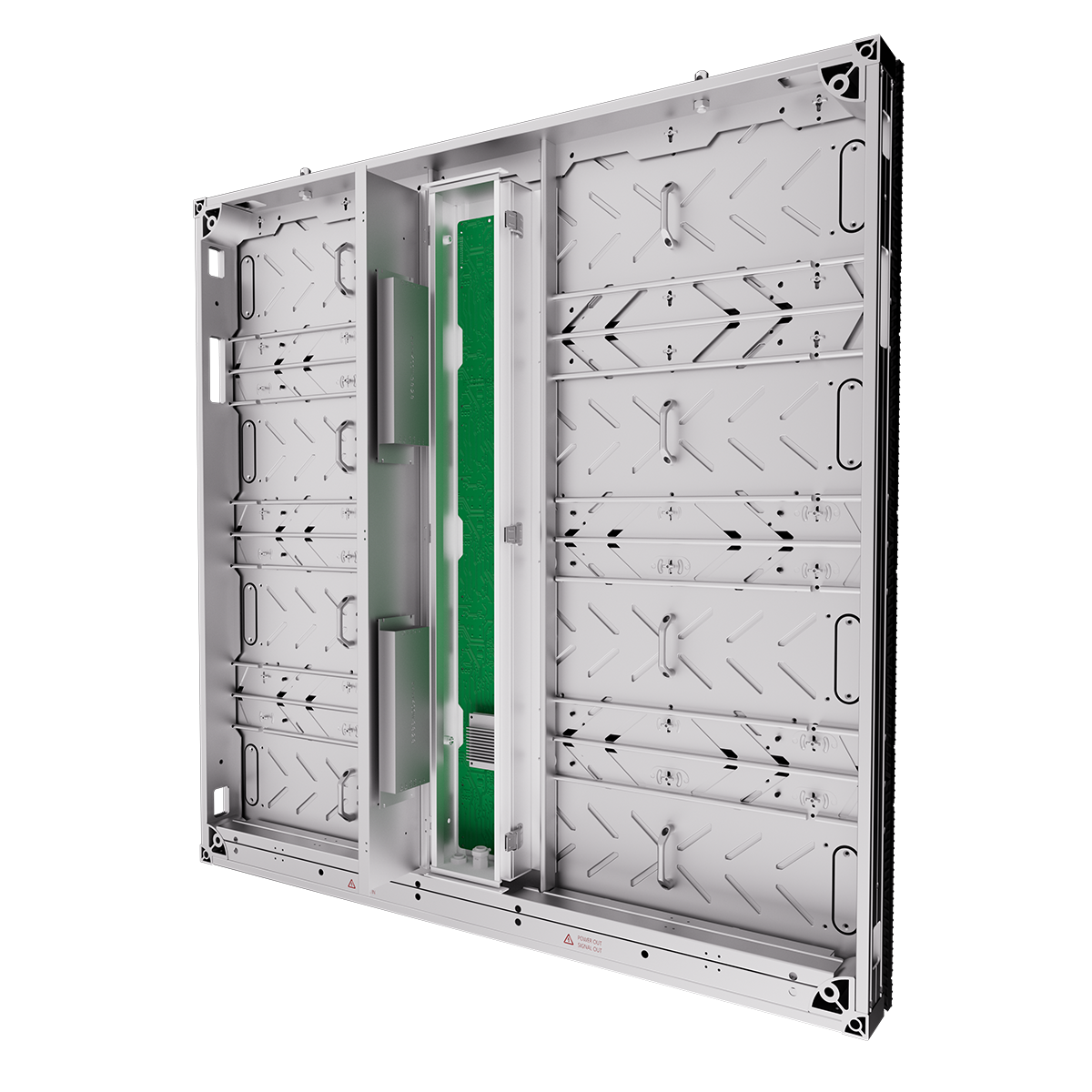

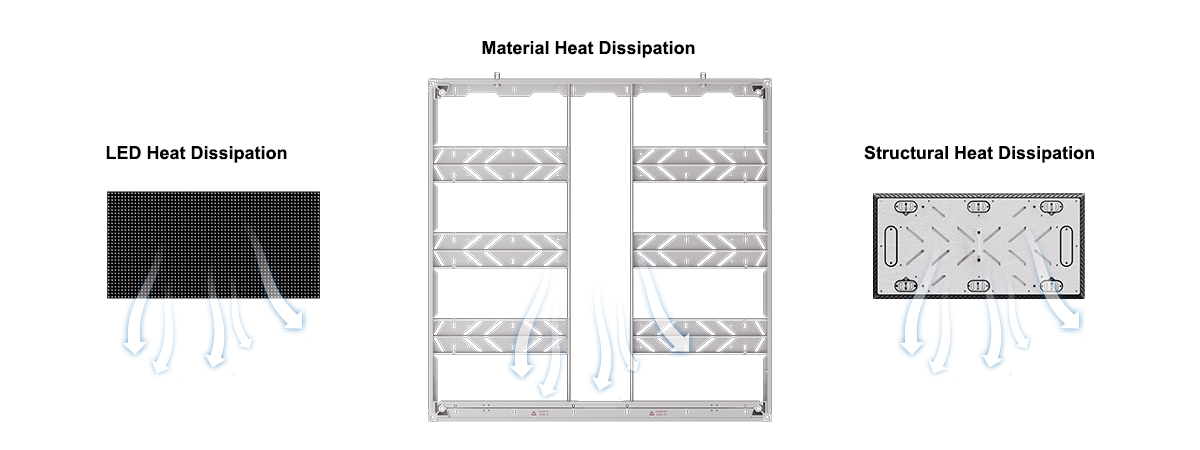

1. LED Heat Dissipation —The DIP570 LED features a direct-insert packaging design, which offers superior heat dissipation performance. 2. Material Heat Dissipation —The back cover is made of aluminum, acting as an integrated heat conductor connected to the PCB, effectively dispersing heat outward in all directions. 3. Structural Heat Dissipation —The cabinet adopts an 80% perforated design, allowing airflow to carry away heat efficiently.
Lighter than traditional cabinets 40%

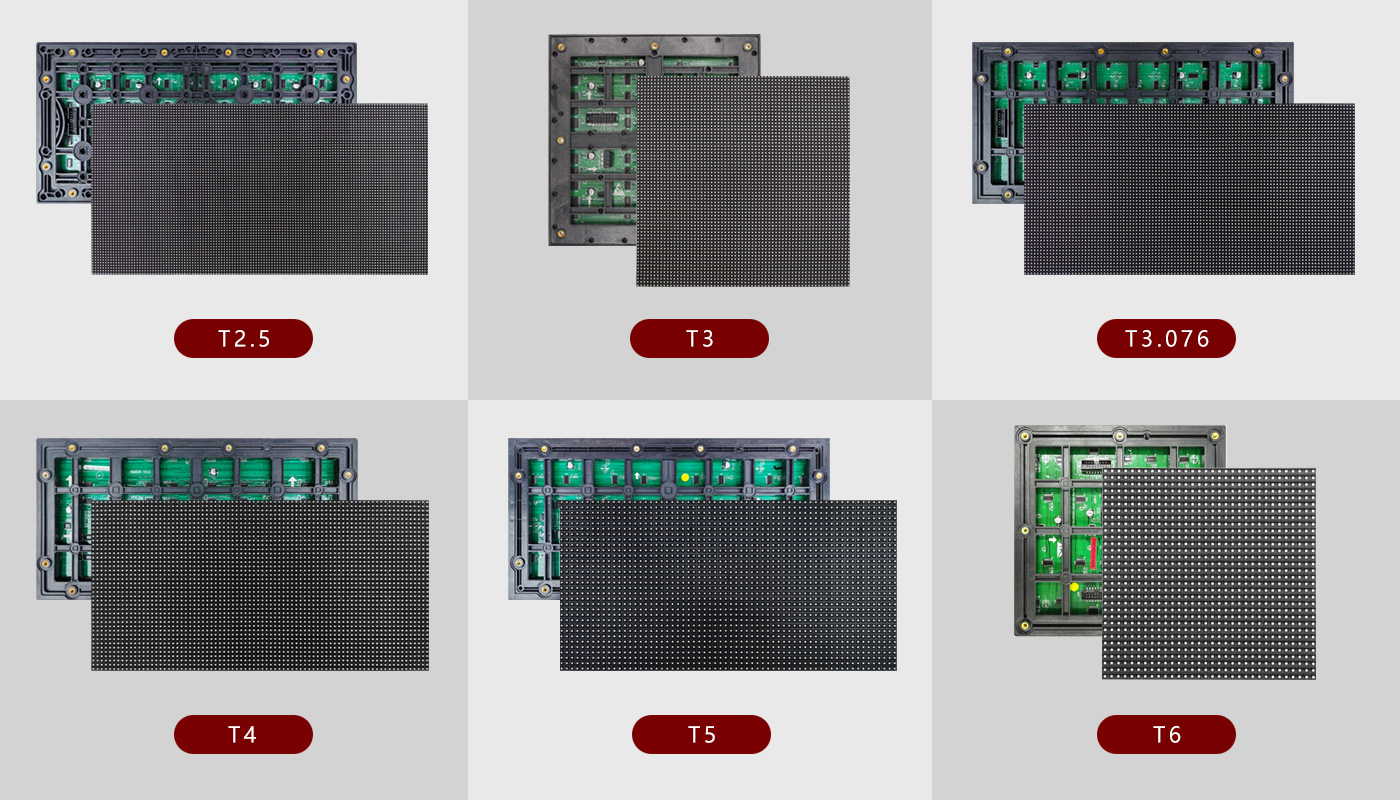

More models for your more needs, please choose your favorite one...
|
Product Name |
A Pro 8 |
A Pro 10 |
A Pro 16 |
|
Pixel Configuration |
DIP570 |
DIP570 |
DIP570 |
|
Pixel Pitch(mm) |
7.8 |
10.4 |
16.1 |
|
Pixel matrix per panel |
144x144 |
120x120 |
96x96 |
|
Cabinet Dimensions(mm) |
1000x1000x105 |
1000x1000x105 |
1000x1000x105 |
|
Transparency Rate |
/ |
/ |
/ |
|
Refresh Rate(Hz) |
3840 |
3840 |
3840 |
|
Drive Mode |
1/6 |
1/5 |
1/4 |
|
Brightness (nits) |
8000-10000 |
8000-10000 |
8000-10000 |
|
Horizontal / Vertical Viewing Angle |
110/55 |
110/55 |
110/55 |
|
AC Input Power Maximum/Average |
380/125 |
380/125 |
380/125 |
Contact our sales team today to discover how our energy-efficient, high-brightness, and stable indoor LED screens can transform your space.
